SVD-P Series High Performance 3 Phase 380V 17kVA 11kW VFD Inverter

SVD-P Series High Performance 3 Phase 380V 17kVA 11kW VFD Inverter

Model: SVD-PT11GB

Phase: Three phase 380V

Power Capacity(kVA): 17 kVA

Input current(A): 26 A

Output Current(A): 25 A

Adaptable Motor: 11kW,15HP

Thermal Power Consumption: 0.445kW

Product Details

SVD-P series high performance 3 phase 380V 17kVA 11kW VFD inverter

Product Description

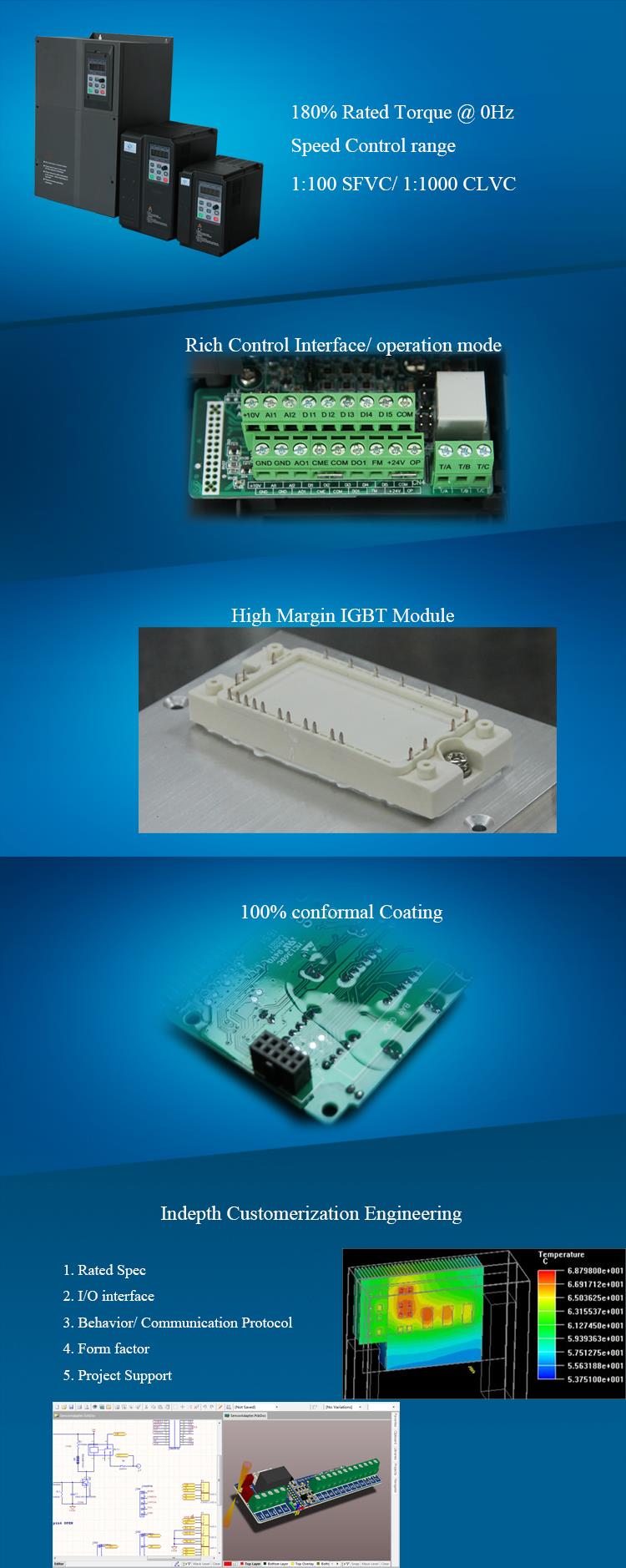

The SVD-P is a general-purpose, high performance variable speed applications, offers a series of powerful features, idea for  demanding application ,  compact, high efficiency

equipped with high start torque, overload capability,fast dynamic,built-in PID, PLC, offering a high precise motor control make of speed DSP, high margin IGBT Module, comformal coating, robust time-proven design



Features:

  • SFVC/CLVC/VF

  • High Start Torque

  • Fast Dyanamic

  • High Frequency & Torque stabliliy

  • Flexible

  • Cost-effective

ItemSpecification
Standard functionsMax O/P frequency• Vector control: 0–300 Hz • V/F control: 0–320 Hz
Carrier frequency0.5–16 kHz  automatically adjusted according to the load features.
I/P Freq. resolutionDigital setting: 0.01 Hz, Analog setting: maximum frequency x 0.025%
Control mode• Sensorless flux vector(SFVC) • Closed-loop vector(CLVC) • V/F
Startup torque• G type: 0.5 Hz/150% (SFVC); 0 Hz/180% (CLVC)  • P type: 0.5 Hz/100%
Speed range1:100 (SFVC) 1:1000 (CLVC)
Speed stability • ± 0.5% (SFVC) • ± 0.02% (CLVC)
Torque accuracy± 5% (CLVC)
Overload capacity• G type: 60s for 150%, 3s for 180% • P type: 60s for 120%, 3s for 150%
Torque boost• Fixed boost   • Customized boost 0.1%–30.0%
V/F curve• Straight-line V/F curve  • Multi-point V/F curve • N-power V/F curve
Ramp mode• Straight-line  • S-curve  • 4 groups of ac/decceleration time 0.0–6500.0s
DC braking•frequency: 0.00 Hz to Max Freq • Time: 0.0–36.0s
JOG controlFrequency: 0.00–50.00 Hz acceleration/deceleration time: 0.0–6500.0s
Voltage regulationMaintain output voltage against the input mains voltage fluctuation.
Stall controlSmart current and voltage regulation to avoid tripping OCP/OVP
Torque limitSmart Torque regulation to avoid tripping OCP
Enhanced functionsHigh performanceHigh-performance current vector control technology.
Power dip ride throughManage speed of motor to ride through short period power interruption
Rapid current limitIt helps to avoid frequent overcurrent faults of the AC drive.
Virtual I/OsFive groups of virtual DI/Dos can realize simple logic control.
Timing controlTime range: 0.0–6500.0 minutes
Multi-motor switchover4 motors with individual motor parameters.
Multi-communication Modbus-RTU, PROFIBUS DP, CANopen.
Motor overheat protectAccept the motor temperature sensor input for overheat protection.
Encoder typessupports: differential, open-collector ,resolver, UVW and SIN encoder
RUNCommand source• Operation panel • Control terminals • Serial communication port
Frequency sourceUp to 10 sources

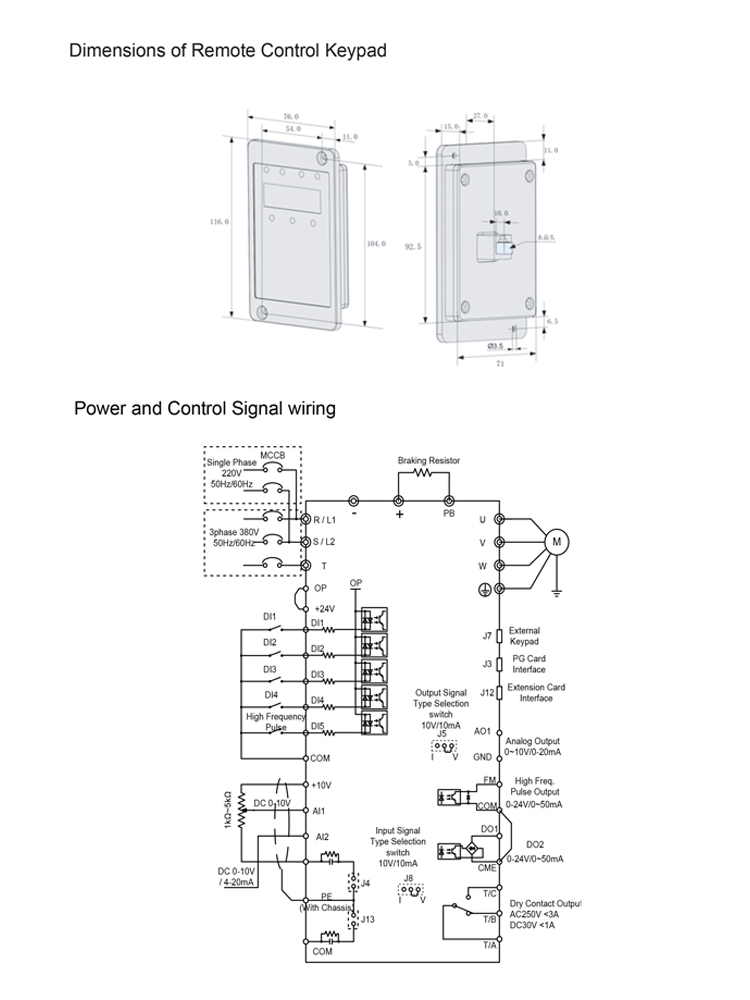

Input terminal• 5 x DI (1 high-speed pulse) • 2 x AI  (0–10 V/ or 4–20 mA)

• Extension : 5 x DI , 1 AI
Output terminal• 2 DO  (1 high-speed pulse) • 1 relay  • 1 AO  0–20 mA or 0–10 V
Extension: 1 DO, 1 relay output, 1 AO  0–20 mA or 0–10 V
PanelDisplayLED numeric displays with LED indicator
Environmentoperation temperature .-10°C to +50°C  derating needed between 40~50°C
Humidity0~ 97%RH, non condensing
IP levelIP20
ModelPower
Capacity
(kVA)
Input
Current (A)
Output
Current
(A)
Adaptable
Motor
(kW, HP)
Thermal Power
Consumption
(kW)
Three-phase 380 V, 50/60 Hz
SVD-PTT0.7GB1.53.42.10.7510.027
SVD-PTT1.5GB353.81.520.05
SVD-PTT2.2GB45.85.12.230.066
SVD-PTT3.7GB5.910.593.750.12
SVD-PTT5.5GB8.914.6135.57.50.195
SVD-PTT7.5GB1120.5177.5100.262
SVD-PTT11GB17262511150.445
SVD-PTT15GB21353215200.553
SVD-PTT18.5G2438.53718.5250.651

vfd invertervfd drives



top 10 vfd manufacturer

 china vfd

Company Information

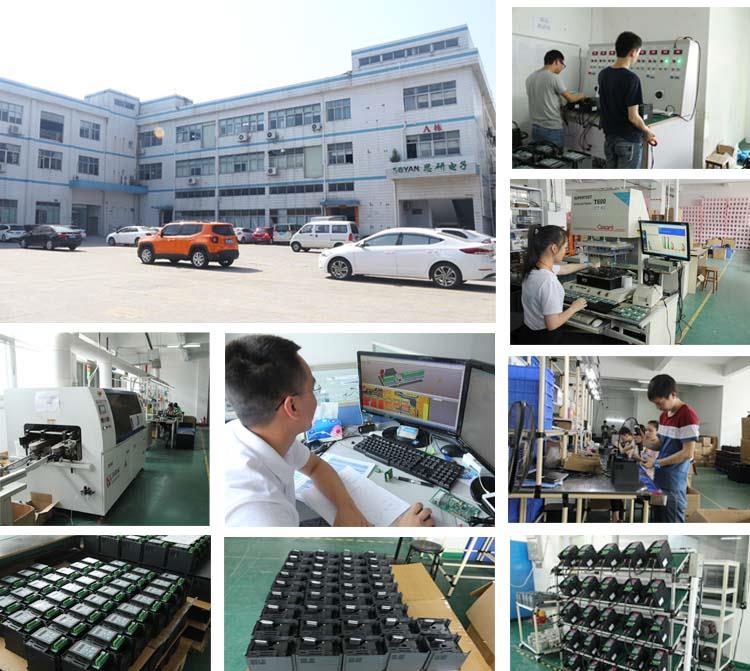

SoyanPower specializes in manufacturing and OEM/ODM business operation,established in 2015 by a group of technical and operative leaders who have over 15 years' experience in power management products development.Located in Shenzhen city,which is the active and efficient center of electronic supply chains in South China,SoyanPower has a professional team of R&D,Supply Chain Management,Manufacturing and International Business Support.

To be a key player in Power management product market,SoyanPower focus on OEM/ODM market and dedicate to developing innovative power management products and delivering professional service to quality customers and end users.Utilizing platforming technology,technical expertise and strong supply chain management capability,SoyanPower devotes to prompt feedback to customer needs with the best products and most competitive prices.SoyanPower is always one of the most sincere and reliable cooperator in global Power management market.

 pure sine wave inverter





FAQ

   1. Q: Can the motor(3ph. 200 volts) adjust the output voltage?

       A: Our VFD output voltage is 220V,so it can work with your 3ph. 200 volts.


   2. Q: How do I wire start stop button to VFD? I see x1-x5 but am clueless how to do it.

       A: When you complete a circuit between x1 - x5 and "common", whatever is programmed for x1 - x5 will be executed (ie. start, stop etc..) You will also need to set the unit for terminal control (I don't know the command number off hand). By setting the unit to terminal control, you will no longer be able to start and stop your machine directally from the VFD.


   3. Q: Does this thing need to be mounted in an electrical cabinet, or can I safely mount it to the side of a piece of     equipment?

       A: Yes,you can mount it in a box or just put it outside!

As one of the well-known svd-p series high performance 3 phase 380v 17kva 11kw vfd inverter manufacturers and suppliers in China, SOYANPOWER is here waiting for you to buy or wholesale svd-p series high performance 3 phase 380v 17kva 11kw vfd inverter made in China through our website.
